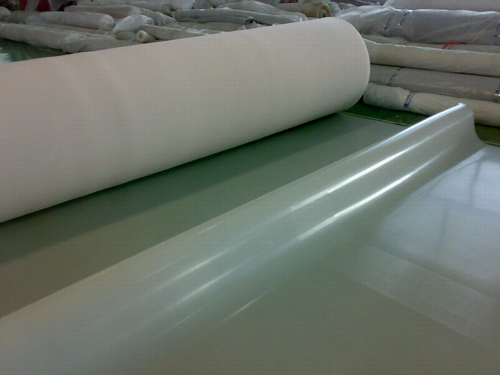

Knowledge of Silicone Rubber Sheet for Solar Photovoltaic Encapsulation Producing

Knowledge of Silicone Rubber Sheet for Solar Photovoltaic Encapsulation Producing
Knowledge of Silicone Rubber Sheet for Solar Photovoltaic Encapsulation Producing

+Silicone Rubber Sheet for Solar Photovotaic Encapsulation

Technical Parameters

Hardness(Shore A)

Tensile strength Mpa

Tearing strength N/mm

High temperature-Resistance

Resistant to EVA

Life time

60±2

≥12.5

≥48

℃250

Strong

2500 times of processing solar encapsulation

Made of self-developed special formula to high improve the properties of silicone sheet like: acid-resistance, other chemical substance-resistance, high temperature resistance, and great tensile strength and tear/scrape resistance

+Product Description:

Great Acid resistance

Chemical agents resistance,

High temperature resistance,

Great tensile strength

Great tearing strength

Highly prolong useful life

+PRODUCT SPECIFICATIONS:

Thickness: 3mm thickness (If you need other thickness, please inquiry us.)

Maximum width: 4000mm without combination

Customization available according to customer’s requirements.

+ Procedure of Ordering:

Be ware of the kind of silicone you need: for EVA glass lamination or for solar encapsulation.

If you need silicone vacuum bag for EVA glass lamination, please offer the internal size and external size of the silicone bag.

If you need silicone rubber sheet for solar encapsulation, please offer the thickness, width, length.

All rights reserved by :

China Ucolin Glass Lamination Solution Experts:

-Silicone Vacuuming Bag for EVA Glass Laminating Machine/Privacy Glass Laminating

-Silicone Rubber Sheet Manufacturer for Solar EVA Photovoltaic Panel Encapsulation

([email protected] / www.ucolin.com /[email protected]/[email protected])

Knowledge of Silicone Vacuum Bag for EVA Glass Laminating Machine

+Differences

-Silicone Bog for EVA Glass Lamination is made of ordinary silicone sheet.

-Silicone Rubber Sheet for Solar Encapsulation is strongger in some properties

-Price is different.

+The combination of the silicone bag:

silicone vacuum bag glass lamination machine

-Upper Silicone Sheet

-Down Silicone Sheet

-Edge Gear

-Silicone Tube

+Technical Parameters of Silicone Vacuum Bag

Tensile strength

(Mpa)

Tearing strength

(N/mm)

Hardness

(Shore A)

Breaking extensibility

%

Color

Pattern

6.5 26 55±5 450 Transparent One smooth

One cloth grain

+Description:

-Product Purpose: used for glass vacuum laminating machines to make

safety laminated glass with EVA FILM INTERLAYER, or for making privacy glass, switchable glass with PDLC FILM and EVA FILM

-Product features: heat-resistant, aging-resistance , anti-corrosive,environment-friendly, Long-use life, good resistance

+Product specification:

1) common thickness: 3mm

2) maximum width:

3800mm with no joint

3) any length

4) common color: transparent,

red, and any color available

Customization is available as customers require

+Notes When Using the Silicone Vacuum Bag

-Please edging the glass before laminating, which can prohibit the sharp glass edges of the glass cut the silicone bag.

-Use tape to seal the pre-laminated glass to reduce the EVA leaking from the laminated glass.

-Use some papers/fabric to cover the silicone bag to separate the EVA from the silicone bag

-Put some wires net on the vacuum hole to help vacuuming.

-When not laminating , put the silicone bag out of the hot oven.

UV Accelerated Aging Tester Machine for Laminated Glass/Solar EVA FILM

UV Accelerated Aging Tester Machine

Type Code: Q8-UV3

UV Accelerated Aging Tester Machine  for laminated glass with EVA FILM
UV Accelerated Aging Tester Machine for laminated glass with EVA FILM

+Standard:

The product can be designed by following the Standard of GB/T 14522-93(China National Standard of Accelerated Aging Test), ASTM G154, D4587-91,ISO 11507/4892-3, NE 927-6 etc.

+Power: AC 220V-50HZ-1∮3wire-25A (voltage error should be less than 10%)

+Technical Parameters:

Effective Radiation Range 900×210mm (W×H)

Light Center Distance 70mm

Wavelength Range UVA-340:315~400nm

Radiation Intensity Adjustable within 1.0w/ m2/340nm

Temperature Accuracy 0.1℃

UV Light Temperature Range 50℃~70℃/Acceptable Error±3℃

Water Spray Temperature Range 40℃~60℃/Acceptable Error±3℃

Temperature Control PID Self-Adjust

Humidity Range 45%~98%R.H

Water Sink Water Depth less than 25mm (automatic control)

Environment Of Placing Tester 5~35℃、45%~85%R.H、Away from the wall 300mm

Samples Away from UV light 50mm

+Main Principle:

-Q8-UV3 Accelerated Aging Tester adopts fluorescent UV light UVA-340 and the water-spray system in order to imitate the damage of sunlight, rain, humidity etc.

The samples is under UV radiation damage and the water spray damage circularly.The damage intensity would be more than 1o times of the damage in the natural environment.

-The damage is like: fading, changing color, delamination, haze, bubbles, embrittlement , aging, oxidation etc.

+Sample Self

Sample Self of UV Accelerated Aging Tester Machine  for laminated glass with EVA FILM
Sample Self of UV Accelerated Aging Tester Machine for laminated glass with EVA FILM

-Samples Dimension:75×150mm, Maximum Thickness:20mm (Customization is available)

-Samples Quantity :About 24 pieces at one time (for reference)

+UV light :

-There are 8 UV lights installed inside the tester.

-Two type of UV light for option: UVA-340 and UVB-313

-UVA-340: spectral radiation intensity focus on 340nm wavelength

-UVB-313 spectral radiation intensity focus on 313nm wavelength

-Uselife cycle of the UV light: 1800~2500hours

-Because the radiation intensity is becoming weak after using, so after the 25% of the uselife circle, please replace one of the “old UV light ” by “non-used UV light”, then the Radiation Intensity will be constant.

princible  of UV Accelerated Aging Tester Machine for laminated glass with EVA FILM
princible of UV Accelerated Aging Tester Machine for laminated glass with EVA FILM

+Black Board:

-Temperature Deviation of different pieces of test samples:≤4% (the temperature is even on the surfaces of the samples)

-Temperature Inspector:Pt-100 Sensor(±2.0℃) (Accurately inspecting the temperature)

-Temperature range:40-93℃±10%

+Water Control:

-Water vapour reaches the code face of samples and become water.

-Water Sink Temperature Range :40~60℃

+Timing Control

Timing range: 0~9999H(including cumulative function and Memory when power lose unexpectedly )

+Security:

-If the temperature is oven 93℃±10%, the system will shut off the Light and Heater and start to cool.

-Water Sink Alarm.

+Tester Machine Size

-External Dimension:H1550mm×W1350mm×D510 mm

Notes:Protruded Parts is not counted into the Dimension.

-Weight; about 136 kg

China Ucolin Glass Lamination Solution Experts:

-Silicone Vacuuming Bag for EVA Glass Laminating Machine/Privacy Glass Laminating

-Silicone Rubber Sheet Manufacturer for Solar EVA Photovoltaic Panel Encapsulation

([email protected]/www.ucolin.com/[email protected]/[email protected])

Silicone Rubber Sheet for Solar Panel Encapsulation

Silicone Rubber Sheet for Solar Panel Encapsulation
Silicone Rubber Sheet for Solar Panel Encapsulation

Silicone Rubber Sheet for Solar Panel Encapsulation

PRODUCT FEATURES:

-Acid resistance

-Chemical agents resistance,

-High temperature resistance,

-Great tensile strength

-Great tearing strength

-Highly prolong useful life

PRODUCT TECHNICAL DATA:

-Hardness: 60±2(Shore A)

-Tensile strength ≥12.5MPA

-Tearing strength ≥48N/mm

-Maximum temperature : 230℃

-Resistance to EVA : YES

-Normal using life >2500times

PRODUCT SPECIFICATIONS:

-Thickness: 3mm thickness (If you need other thickness, please inquiry us.)

-Maximum width: 4000mm without combination

-Customization available according to customer’s requirements.

+China Silicone Vacuuming Bag manufacturer for EVA Glass Laminating Machine/Privacy glass laminating

+China Silicone Sheet Manufacturer for Solar EVA Photovoltaic Panel Encapsulation

([email protected] / www.ucolin.com /[email protected]/[email protected])

Silicone Vacuum Bag used for glass vacuum laminating machines

Silicone Vacuum Bag used for glass vacuum laminating machines

Silicone Vacuum Bag used for glass vacuum laminating machines
Silicone Vacuum Bag used for glass vacuum laminating machines

Product Purpose: used for glass vacuum laminating machines to make

safety laminated glass with EVA FILM INTERLAYER, or for making privacy glass, switchable glass with PDLC FILM and EVA FILM

Product features: heat-resistant, aging-resistance , anti-corrosive,environment-friendly, Long-use life, good resistance

Product specification:

1) common thickness: 3mm

2) maximum width:

3800mm with no joint

3) any length

4) common color: transparent,

red, and any color available

5) Customization as customers requires

Product series : good tear resistance and high tear-resistance

+China Silicone Vacuuming Bag manufacturer for EVA Glass Laminating Machine/Privacy glass laminating

+China Silicone Sheet Manufacturer for Solar EVA Photovoltaic Panel

Encapsulation

([email protected] / www.ucolin.com /[email protected]/[email protected])

deliverytime of customizing silicone blankets

deliverytime of customizing silicone blankets

Because for silicone blankets for eva glass laminating, we all customizing as customer requires.

So the delivery time would be about 7 days after customer confirm the order of silicone blankets.
